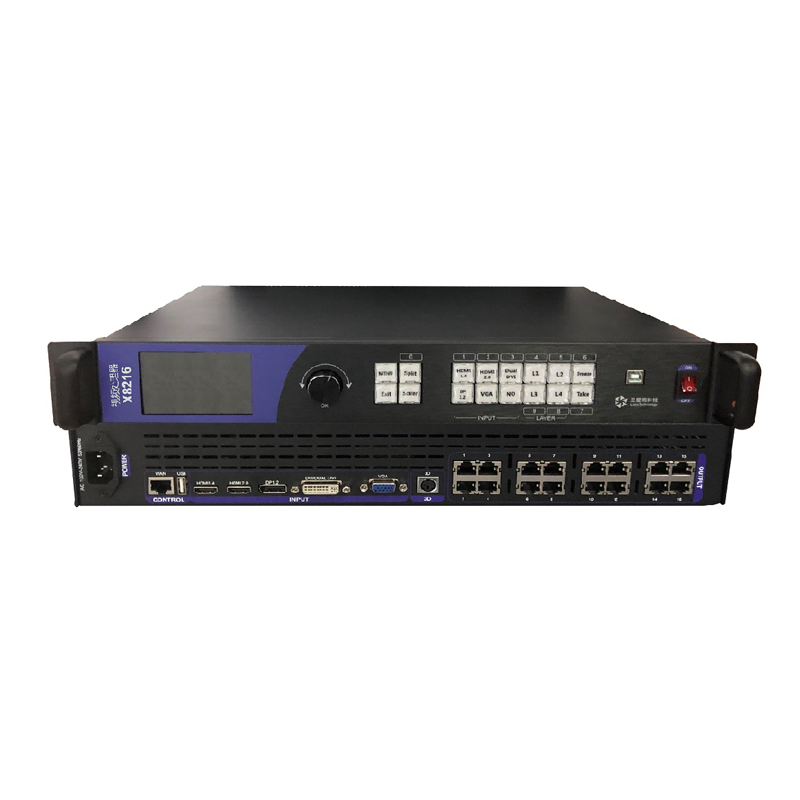

X8216 video processor designed for large led screen, which is a professional two-in-one video processor. It supports 4K input, 120Hz/3D display, 3-window layouts and 10-bit color depth. It has 16 outputs and supports up to 10.4 million pixels: up to 8192 pixels horizontally or 4000 pixels vertically.
X8216 high definition player is a reliable and high performance led screen controller. It uses mature video processing solution and 8bit color processing to show colorful and clear image. Dual network outputs for led screen, which led control center is easy to use and install. It is a best choice for advertisement in mall, hotel and exhibit.
Functions：
- Integrated with sending card and video processor;
- With 16 outputs, supports up to 10.4 million pixels;
- Supports up to 8192 pixels horizontally or up to 4000 vertically;
- Support DP1.2/HDMI2.0 4K@60Hz input;
- Supports switching multiple channels seamlessly;
- Supports EDID custom management;
- Support full screen scaling and pixel-to-pixel scaling;
- Supports 3-windows layouts(place left, middle, right) for any input sources;
- Supports adjusting image quality;
- Supports PIP function for any input source;
- Supports 3D function.
|
No |
Interface |
Description |
|
1 |
LCD |
Displaysmenu and current status |
|
2 |
Control knob |
1.Press down to enter menu 2. Rotate to select or set up |
|
3 |
MENU |
Main menu |
|
4 |
Split |
For entering layout menu |
|
5 |
Signal |
For selecting input source, and the one being selected will light up |
|
6 |
Freeze |
Freezesimage |
|
7 |
USB |
For connectingPC to communicate with LEDSETto do the setup and upgrade |
|
8 |
Power switch |
|
|
9 |
Take |
1.2D/3D switch key 2.For selecting input source when two/three windows output are under use |
|
10 |
NO |
Reserved |
|
11 |
Scale |
Shortcut for zooming in/out, and it is effective under four-network-port splicing and preview mode |
|
12 |
Exit |
Return or cancel |
|
Note: |
Split, HDMI1.4, HDMI2.0, DVI, L1, L2, Freeze, Take, L4, L3 represents 0-9 respectively when number mode is activated |
| FILE NAME | DOWNLOAD |
| X8216 Video Processor | Specification |
