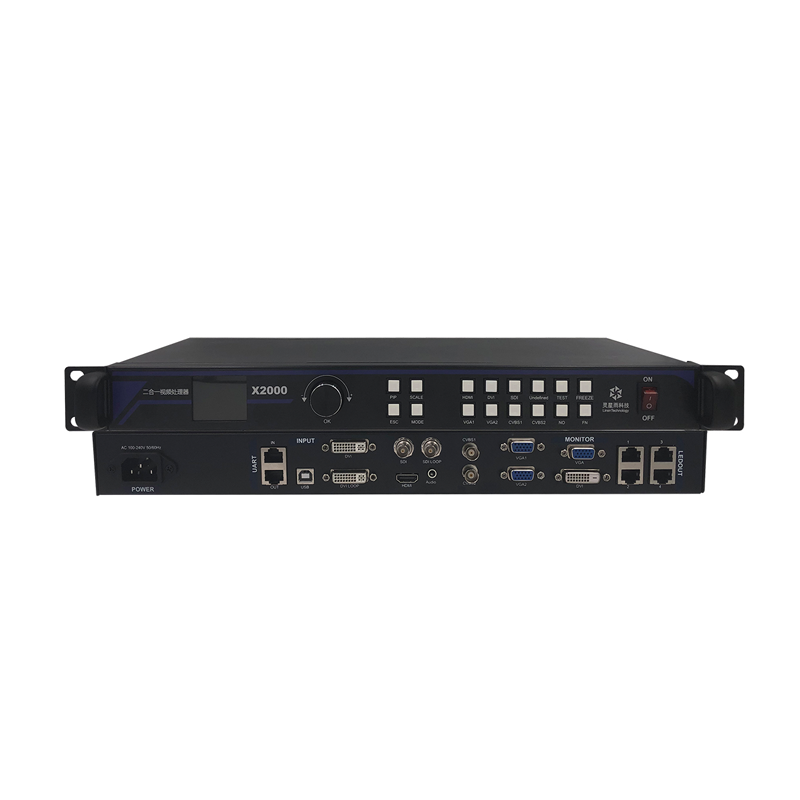

X2000 video processor, integrated with sender, which is a professional two-in-one video processor. It uses advanced image processing technology and has various inputs and it is easy to use. One processor supports up to 2.3 million pixels: up to 3840 pixels horizontally or 1920 pixels vertically.
X2000 box controller is a reliable and high performance led screen controller. It uses mature video processing solution and 8bit color processing to show colorful and clear image. Dual network outputs for led screen, which is easy to use and install. It is a best choice for advertisement in mall, hotel and exhibit.
X2000 pixel led player can replace VP2800 led video processor (has been discontinued).
Functions:
- Two-in-one video processor integrated with sender;
- Supports up to 2.3 million pixels with four outputs;
- Supports up to 3840 pixels horizontally or 1920 pixels vertically;
- Supports DVI/HDMI1.3@60Hz/VGA/CVBS/ SDI(optional)input;
- Supports switching different channel with fade-in/out or seamless effect;
- Supports EDID custom management;
- Supports full-screen scaling, pixel-to-pixel scaling;
- Supports image quality process;
- Supports two image display;
- Supports PIP and fade-in/out effect;
- Supports cascade;
- Supports audio output via multifunction board when inputting HDMI signal.
|
No. |
Interface |
Features |
|
1 |
LCD |
For display menuand operation |
|
2 |
Control Knob |
1.Press down to enter menu 2.Rotate to select or set up |
|
3 |
Return |
Exit or return |
|
4 |
Mode |
For mode selection |
|
5 |
PIP |
Quick setup for PIP |
|
6 |
Scale |
Scaling button |
|
7 |
Video source input selections |
There are 8 buttons in this section: （1）HDMI:HDMIsignal input selection （2）DVI:DVIsignal input selection （3）VGA1\VGA2:VGAinput selection, only one VGAcan beenabledat a time （4）CVBS1\CVBS2:both CVBSchannels can be used simultaneously （5）Undefined:SDIOne of them is used as SDI signal input |
|
8 |
None |
|
|
9 |
FN |
Reserved |
|
10 |
TEST |
For testing, output R,G,B,Wgrayscale colorbar |
|
11 |
Take |
Output confirm. Press down Take button to switchthe video source output |
|
12 |
Power |
Power switch |
| FILE NAME | DOWNLOAD |
| X2000 Video Processor | Specification |
