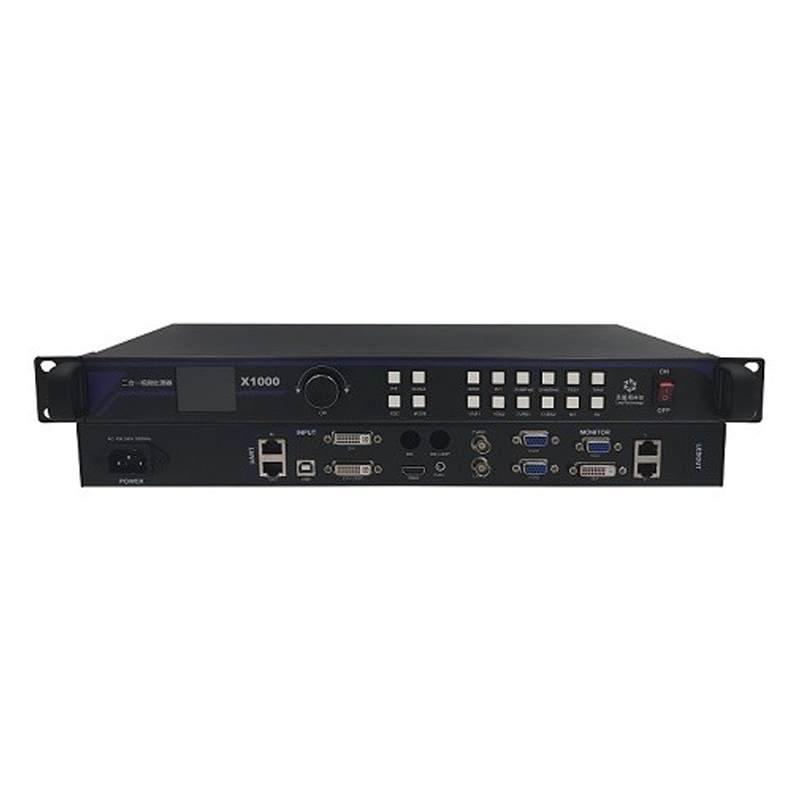

X1000 video processor, integrated with sender, which is a professional two-in-one video processor. It uses advanced image processing technology and has various inputs and it is easy to use. One processor supports up to 1.3 million pixels: up to 3840 pixels horizontally or 1920 pixels vertically.
X1000 led controller is a reliable and high performance led screen controller. It uses mature video processing solution and 8bit color processing to show colorful and clear image. Dual network outputs for led screen, which is easy to use and install. It is a best choice for advertisement in mall, hotel and exhibit.
X1000 led processor can replace VP1800 led video processor (has been discontinued)
Functions:
- Two-in-one video processor integrated with sender;
- Supports up to 1.3 million pixels with two outputs;
- Supports up to 3840 pixels horizontally or 1920 pixels vertically;
- Supports DVI/HDMI1.3@60Hz/VGA/CVBS/ SDI(optional)input;
- Supports switching different channel with fade-in/out or seamless effect;
- Supports EDID custom management;
- Supports full-screen scaling, pixel-to-pixel scaling;
- Supports image quality process;
- Supports two image display;
- Supports PIP and fade-in/out effect;
- Supports cascade;
- Supports audio output via multifunction board when inputting HDMI signal.
|
No. |
Interface |
Features |
|
1 |
LCD |
For display menu and operation |
|
2 |
Control Knob |
1.Press down to enter menu 2. Rotate to select or set up |
|
3 |
Return |
Exit or return |
|
4 |
Mode |
For mode selection |
|
5 |
PIP |
Quick setup for PIP |
|
6 |
Scale |
Scaling button |
|
7 |
Video source input selections |
There are 8 buttons in this section: （1）HDMI: HDMIsignal input selection （2）DVI: DVIsignal input selection （3）VGA1\VGA2:VGAinput selection, only one VGA can be enabled at a time （4）CVBS1\CVBS2:both CVBSchannels can be used simultaneously （5）Undefined: SDIOne of them is used as SDI signal input |
|
8 |
None |
|
|
9 |
FN |
Reserved |
|
10 |
TEST |
For testing, output R,G,B,Wgrayscale colorbar |
|
11 |
Take |
Output confirm. Press down Take button to switch the video source output |
|
12 |
Power |
Power switch |
| FILE NAME | DOWNLOAD |
| X1000 Video Processor | Specification |
