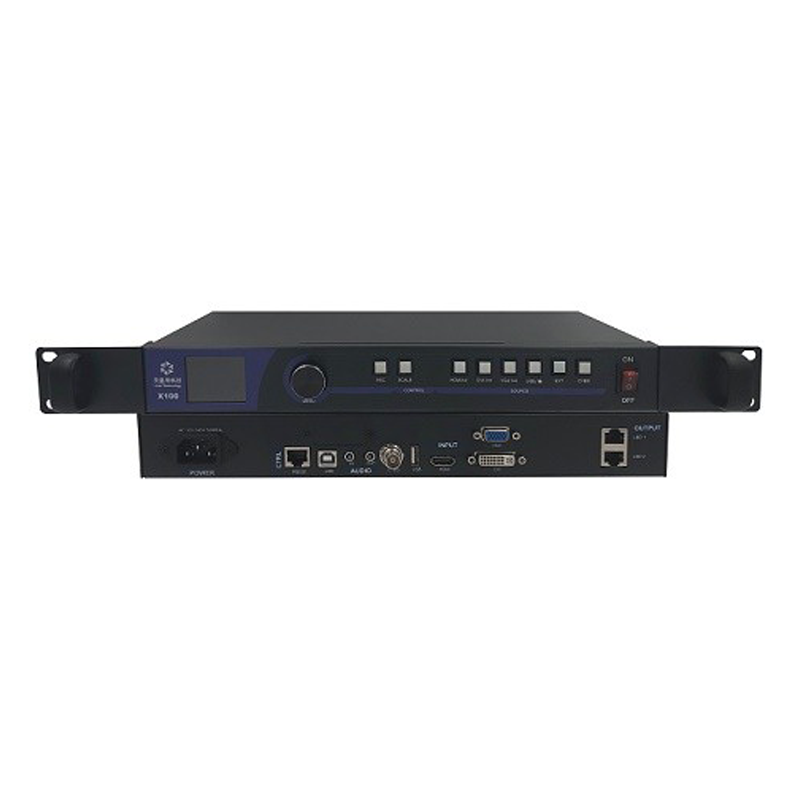

X100 video processor designed for small fixed installation led screen, which is a cost-effective all-in-one video processor. It integrates sender, linsn RCG file, video processor and supports USB-flash-drive plug and play. It supports up to 1.3 million pixels: up to 1920 pixels horizontally or 1080 pixels vertically.
X100 video controller box is a reliable and high performance led screen controller. It uses mature video processing solution and 8bit color processing to show colorful and clear image. Dual network outputs for led screen, which is easy to use and install. It is a best choice for advertisement in mall, hotel and exhibit.
Please note that X100 only works with Linsn receiving card.
Functions:
- All-in-one video processor integrated with sender;
- Supports USB-flash-drive plug and play;
- With two outputs, supports up to 1.3 million pixels;
- Supports up to 1920 pixels horizontally or 1080 pixels vertically;
- Supports audio input and output;
- Supports DVI/VGA/CVBS/HDMI1.3@ 60Hz input;
- Input source is switchable by specific button;
- Supports EDID custom management;
- Supports full-screen scaling, pixel-to-pixel scaling.
|
No |
Interface |
Feature |
|
1 |
LCD |
For displayingmenu and checking current operation |
|
2 |
Control Knob |
1.Press down to enter menu 2. Rotate to select or set up |
|
3 |
Return |
Exit or return |
|
4 |
Scale |
Quick path for full-screen scaling |
|
5 |
Video source input selections |
There are 6 buttons in this section: （1）HDMI: HDMIinput selection; it is used as pause button when flash-drive-play mode is enable （2）DVI：DVIinput selection; it is for playing the last file when flash-drive-play mode is enable. （3）VGA：VGAinput selection，it is for playing the next file when flash-drive-play mode is enable. （4）USB ：Flash drive input selection; it is used as stop button when flash-drive-play mode is enable （5）EXT ：Input selection for Android extend board （6）CVBS: CVBSinput |
| FILE NAME | DOWNLOAD |
| X100 Video Processor | Specification |
