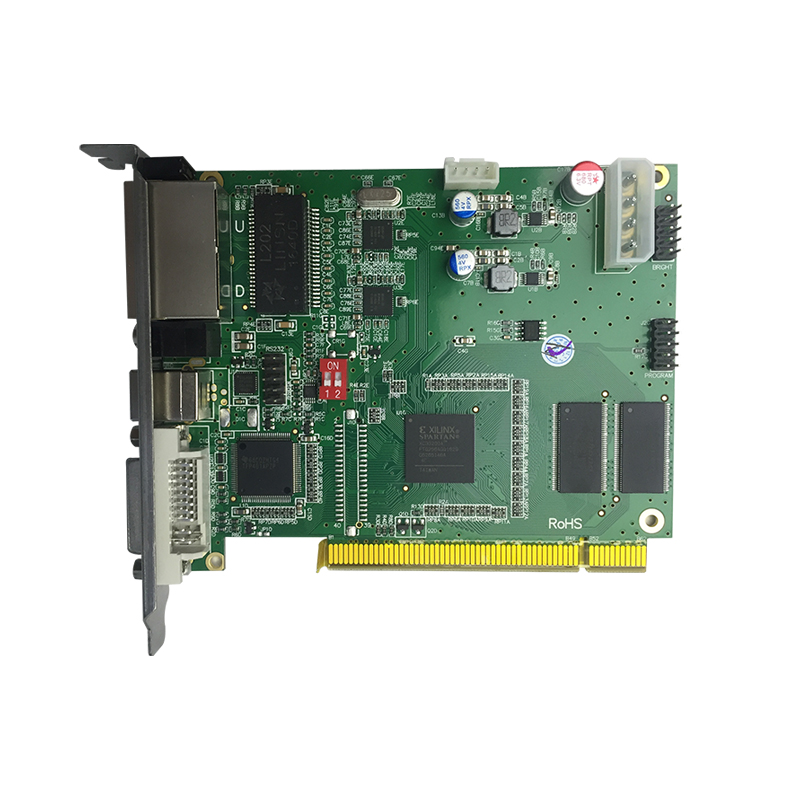

TS802D Sender Card

Features:

1) TS802D sender card max supports 2048*640;

2) Supporting display mode: 640*480 800*600 1024*768 1280*768 1280*800 1280*1024 1440*900 1440*1080 1600*1200 1680*1050 1728*1296 1920*1080 1920*1200 2048*1152 2048*1280;

3) Audio Transmission Function
TS802D sender card sends audio data using network cable, and Function board outputs audio signals to the display. Double 24bits 64KHZ hi-fi digital signal to analog signal or analog signal to digital signal, making display have the perfect video effect;

4) Cascade function
Through the dig switch on TS802D sender card, several TS802D sender cards can be easily cascaded to support a super large led display;

5) Sending card U/D port flexibility for carrying half width or half height
For example, Linsn sending card ts801 can max support 1280*1024 with two ports, a single network output port supports 1280*512 or 640*1024;

6) Sender card rotation function
In Sender setting, sender card has 0, 90, 180, 270 degree rotation function;

7) Sender card zoom in/out function
In Sender setting, the ratio of width and height can be set to realize zoom in or zoom out;

8)Supporting 10-bit colors
The seventh supports 8-bit colors: 256*256*256=16777216 kinds of colors.
The eighth supports 10-bit colors: 1024*1024*1024=1073741824 kinds of colors. It needs to work with our video processors using the 30 bits TTL;

9) Multi-display synchronous and combination functions.
One sending card can control multi-displays, realizing displays combination, synchronous display, and independent play.
