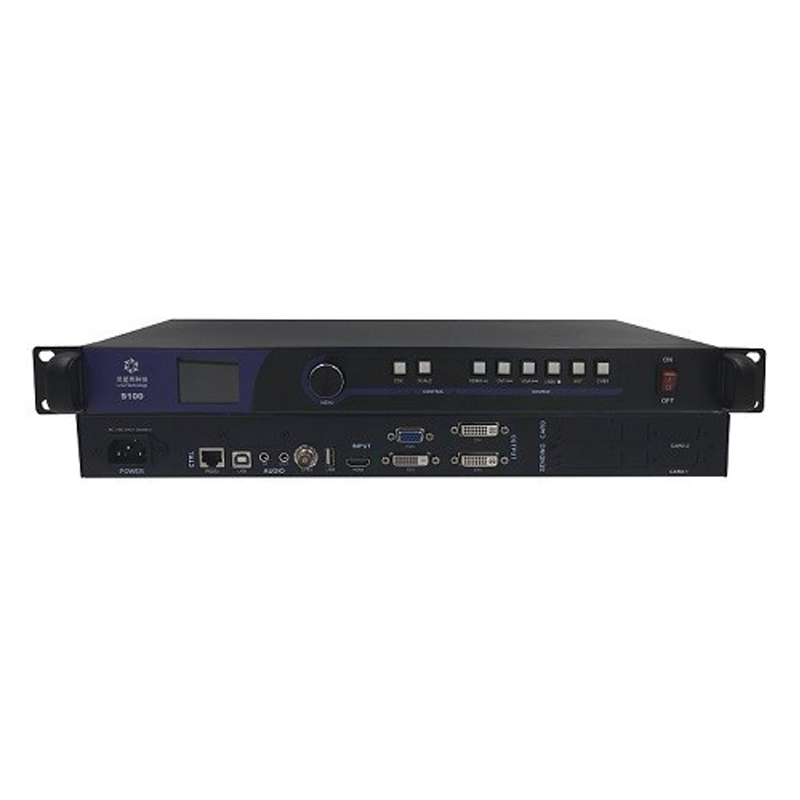

Linsn S100 video processor is a reliable and high performance led screen controller. It uses mature video processing solution and 8bit color processing to show colorful and clear image.
One S100 video processor controller supports up to 1080P and customizing output. Integrated with two DVI for two-sender cascade output. S100 display controller is a best choice for advertisement in mall, hotel and exhibit.
Functions:
1) One button for switching video-source input;
2) Supports audio input and output;
3) Supports USB plug and play, easy to use;
4) Supports full-screen scaling, point- to-point scaling, customizing scaling and resolution output;
5) With backup DVI output(dual DVI output same image), it works with any brand of sender;
6) Supports creating, saving and recalling mode for different applications;
7）After installing Android extending board, it supports connecting phone and pad to display, which can be controlled by mouse.
|
No |
Interface |
Feature |
|
1 |
LCD |
For displayingmenu and checking current operation |
|
2 |
Control Knob |
1.Press down to enter menu 2. Rotate to select or set up |
|
3 |
Return |
Exit or return |
|
4 |
Scale |
Quick path for full-screen scaling |
|
5 |
Video source input selections |
There are 6 buttons in this section: （1）HDMI: HDMIinput selection; it is used as pause button when flash-drive-play mode is enable （2）DVI：DVIinput selection; it is for playing the last file when flash-drive-play mode is enable. （3）VGA：VGAinput selection，itis for playing the next file when flash-drive-play mode is enable. （4）USB ：Flash drive input selection; it is used as stop button when flash-drive-play mode is enable （5）EXT ：Input selection for Android extend board （6）CVBS: CVBS |
| FILE NAME | DOWNLOAD |
| S100 Video Processor | Specification |
