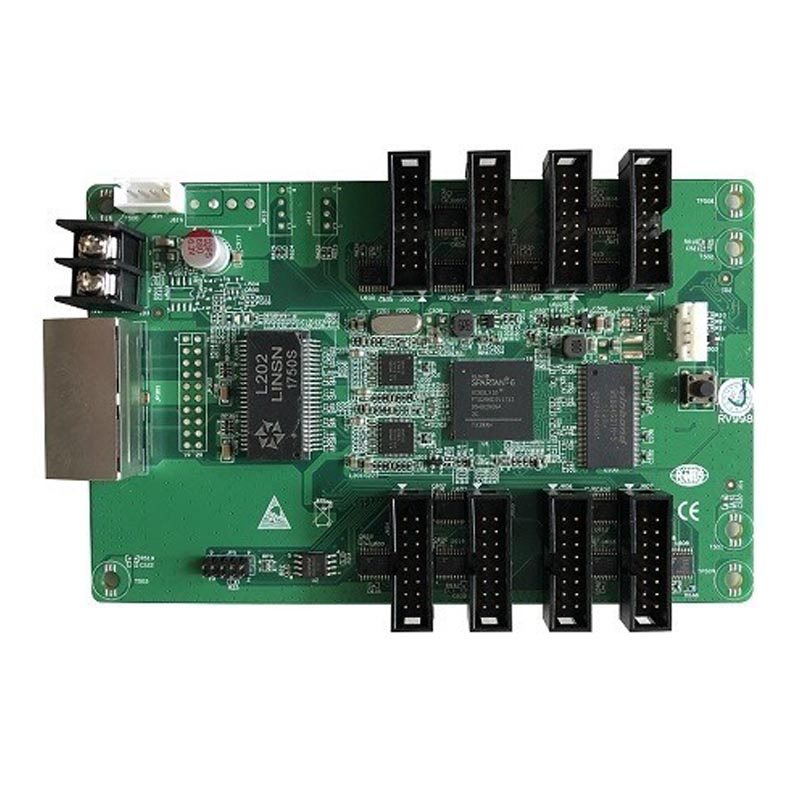

RV998 Receiver Card

RV998 receiver card is a standardize product for led screen manufacturer which doesn’t require extra hub card and is compatible with RV908 with same size. It also equals to RV901 plus a hub75-type hub card (supports up to 32 scan mode).

Features:

1) 8 hub-75 16-pin connectors on board (supports 32 scan mode), no extra hub card needed;

2) Single card maximum support 256X256 or 128X512 pixels;

3) Single card can output 16 groups RGB data;

4) Supports 138 decode, 595 serial decode and so on;

5) Supports pixel-by-pixel brightness and color calibration; and single-card color space conversion;

6) High refresh rate and high grey level;

7) Supports general driver ICs and most of the PWM driver ICs;

8) Supports fetching back RCG file;

9) Support network cable BER test;

10) In line with RoHS standards;

11) In line with EU standards CE-EMC class B.
