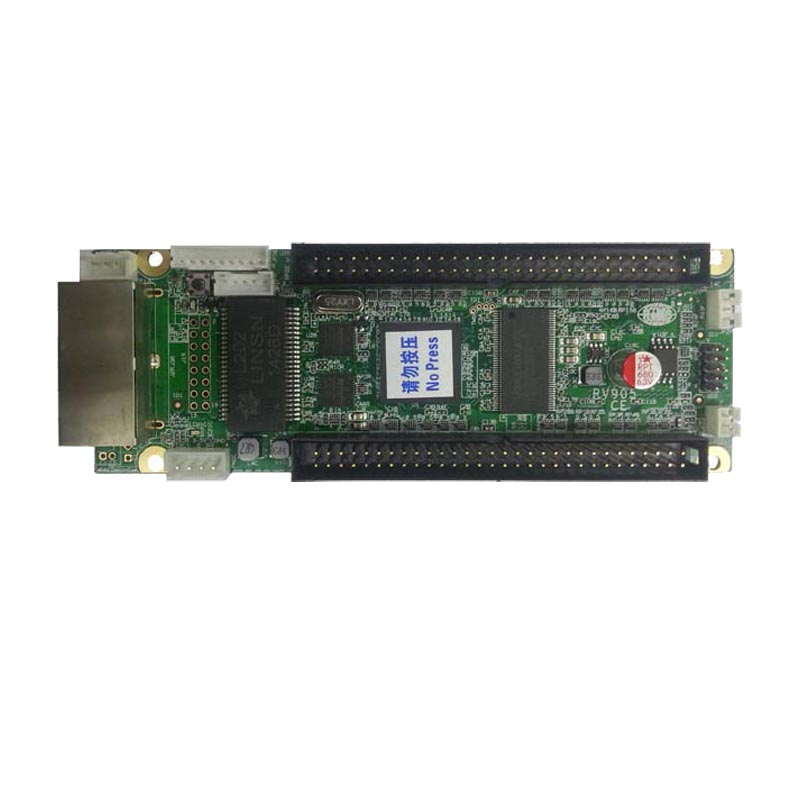

RV905H Receiver Card

RV905H/925H is specifically designed for rental led screen.

Features:

1. support 12-bit HDMI colors input (required the 9th generation sending card);

2. using18-bit signal processor, maximum support 18-bit (260,000) gray (each of red, green and blue);

3. Single card maximum supports 1024X256 pixels, and 1024 grades single pixel chromaticity correction;

4. Supports single-card color space conversion;

5. Support program replication;

6. Supports hot backup with dual receiver cards for demanding performances screen;

7. Supports pixel fault detection (requires a dedicated chip support);

8. Support network cable BER test;

9. Support flat cable fault detection;

10. Support the cabinet-door monitoring (open/close);

11. Two lines fan-speed monitoring;

12. Three lines Voltage monitoring: one for the system, two for cabinet power;

13. Temperature monitoring;

14. Humidity monitoring (humidity sensor sold separately);

15. Smoke monitoring (smoke module sold separately);

16. In line with EU standards CE-EMC.
