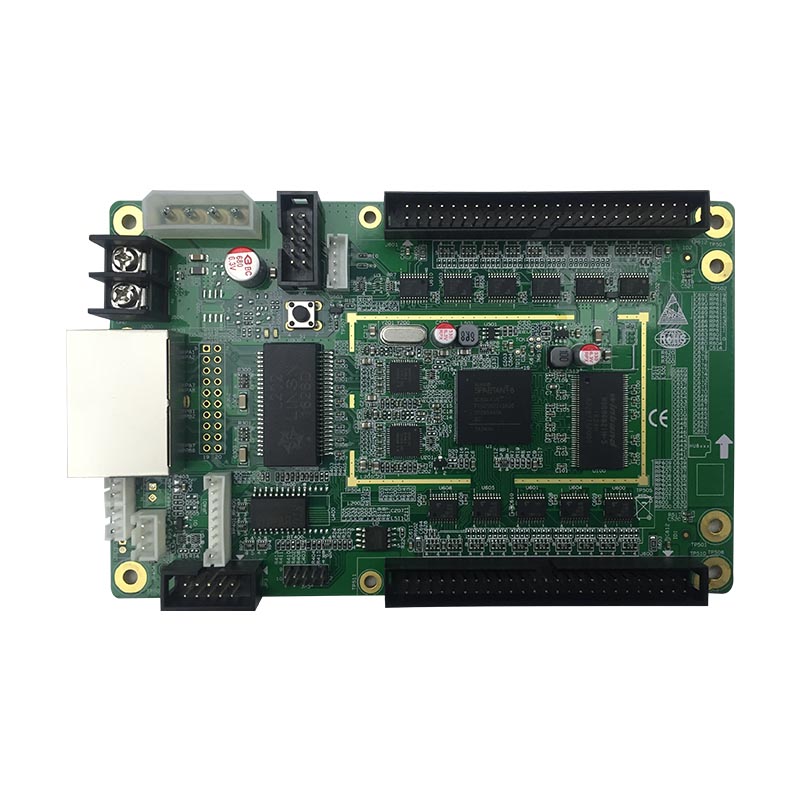

RV901H Receiver Card

RV901H receiver card is the new version of RV901, on-board monitoring, no extra monitoring card needed, to carry pixels of led screen and monitor the screen working status, preventing safety issue and extend lifetime of usage.

Functions：

1. Single card can output 16 groups RGBR’ data;

2. Single card can output 20 groups RGB data;

3. Single card can output 32 groups serial data;

4. Single card maximum supports 1024X256 pixels（Please note that there are recommended values depending on the design of LED screen）;

5. Support temperature detection;

6. Support the cabinet-door (open/close) monitoring;

7. Two lines fan-speed monitoring;

8. Humidity monitoring (humidity sensor sold separately) ;

9. Smoke monitoring(smoke module sold separately) ;

10. Three lines voltage monitoring: one for the system, two for cabinet power;

11. Support pixel-by-pixel brightness calibration; single-card color space conversion;

12. Support network cable BER test;

13. Support hot backup with dual receiver cards for demanding performances screen;

14. High refresh rate and high grey level with most of the driver ICs;

15. In line with EU standards RoHS;

16. In line with EU standards CE-EMC class B.
