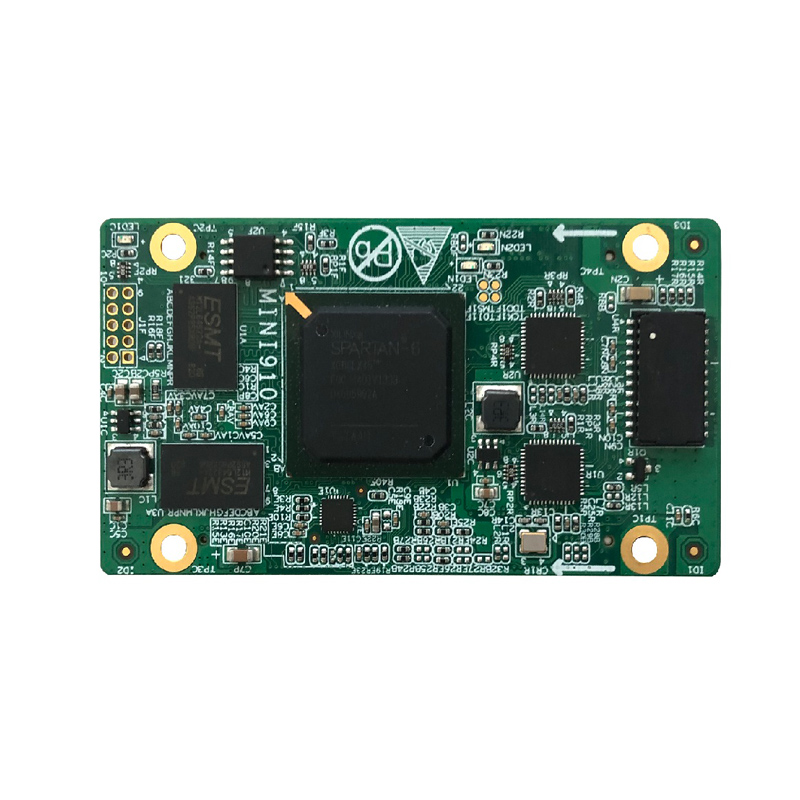

Mini910 Receiver Card

Mini910 receiver card is a ultra-small size full-featured high-end mini-receiver card for led display. Mini910 receiver card specific circuit and program design, can effectively reduce the system’s electromagnetic radiation can effectively help products easily through the EMC certification.

Features:

1.Supports 32-group parallel RGB data output mode；

2. Supports 64-group serial data output mode；

3. Supports saving calibrating data on receiver;

4. Realizes high refresh and high gray level effect；

5. Supports general driver IC and PWM IC；

6. Supports any type of scan within 32 scan, and supports 595 and other serial decoding scan；

7. Supports brightness and color pixel-by-pixel calibration；

8. Maximum supports 512X512 pixels；

9. Supports 12-bit HDMI colors input (requires the 9th generation sending card) ；

10. Use 18-bit signal processor, maximum supporting 18-bit (260,000) greyscale (each of red, green and blue) ；

11. Supports single-card color space conversion；

12. Supports configuration file read back；

13. Support network cable BER test;

14. Supports hot backup with dual receiver cards, dual power supply, etc.

15. Supports saving calibration data to Flash on module.
