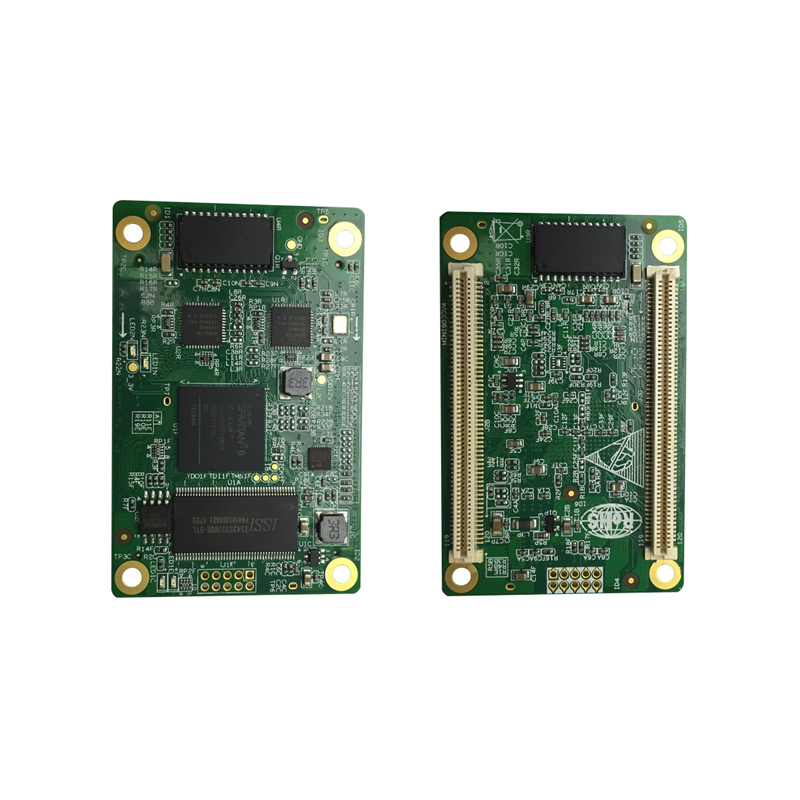

Mini903M Receiver Card

Mini903M receiver card is a ultra-small size full-featured high-end mini-receiver card for led display. Mini903M receiver card specific circuit and program design, can effectively reduce the system’s electromagnetic radiation can effectively help products easily through the EMC certification.

Features:

1. It has all functions of 8th and 9th generation receiver cards and it is completely compatible with them;

2. Single card can support 32- group RGB data output mode;

3. Supports 64-group serial data output mode;

4. Realize high refresh and high gray level effect;

5. Supports general driver IC and PWM IC;

6. Supports any type of scan within 32 scan, and supports 595 and other serial decoding scan;

7. Supports brightness and color pixel-by-pixel calibration;

8. Maximum supports 512X512 pixels;

9. Supports 12-bit HDMI colors input (required the 9th generation sending card);

10. Use 18-bit signal processor, maximum supporting 18-bit (260,000) gray (each of red, green and blue);

11. Supports single-card color space conversion;

12. Supports configuration file read back;

13. Supports network cable BER test;

14. Supports hot backup with dual receiver cards, dual power supplier, etc;

15. RoHS compliant;

16. CE-EMC compliant
