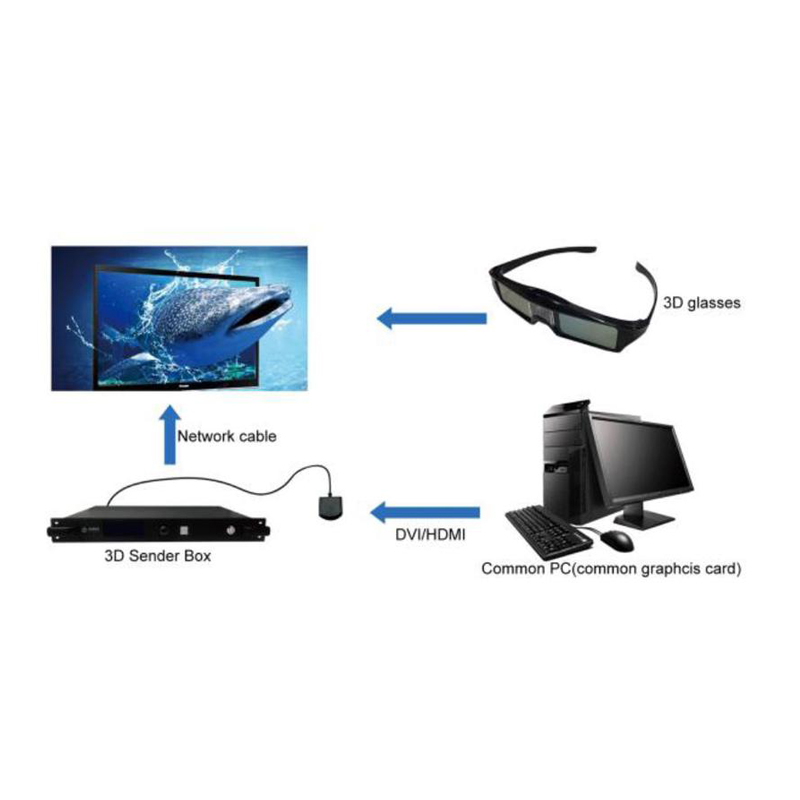

3D260 sender box is a special sending 3d led box developed by Linsn for the ordinary display screen to display the 3D effect, and adopts the shutter type 3D technology.
Support one-key switching of 2D and 3D playback on ordinary full-color display. The maximum load in 2D mode supports 2.6 million pixels, and the maximum load in 3D mode is 1.3 million pixels, which 3d video box can be controlled by multiple cascades.
Features:
1) One DVI video signal input;
2) One HDMI video signal input;
3) Supports fetching back RCG file;
4) Supports broadcasting RCG file;
5) Supports broadcasting CON file;
6) One Audio signal input;
7) Supports cascade function;
8) Supports auto-adjusting brightness (requires light sensor).
Interface introduction |
|
① |
LCDmonitor |
② |
Control knobfor navigate and selection |
③ |
Exit |
④ |
Power switch |
⑤ |
Power input:AC100~240V |
⑥ |
Indicator: green for signal |
⑦ |
Indicator: red for power |
⑧ |
4 gigabit network output ports |
⑨ |
DVI loop-through output |
⑩ |
HDMIloop-through output |
FILE NAME | DOWNLOAD |
3D260 Sender Box | Specification |
